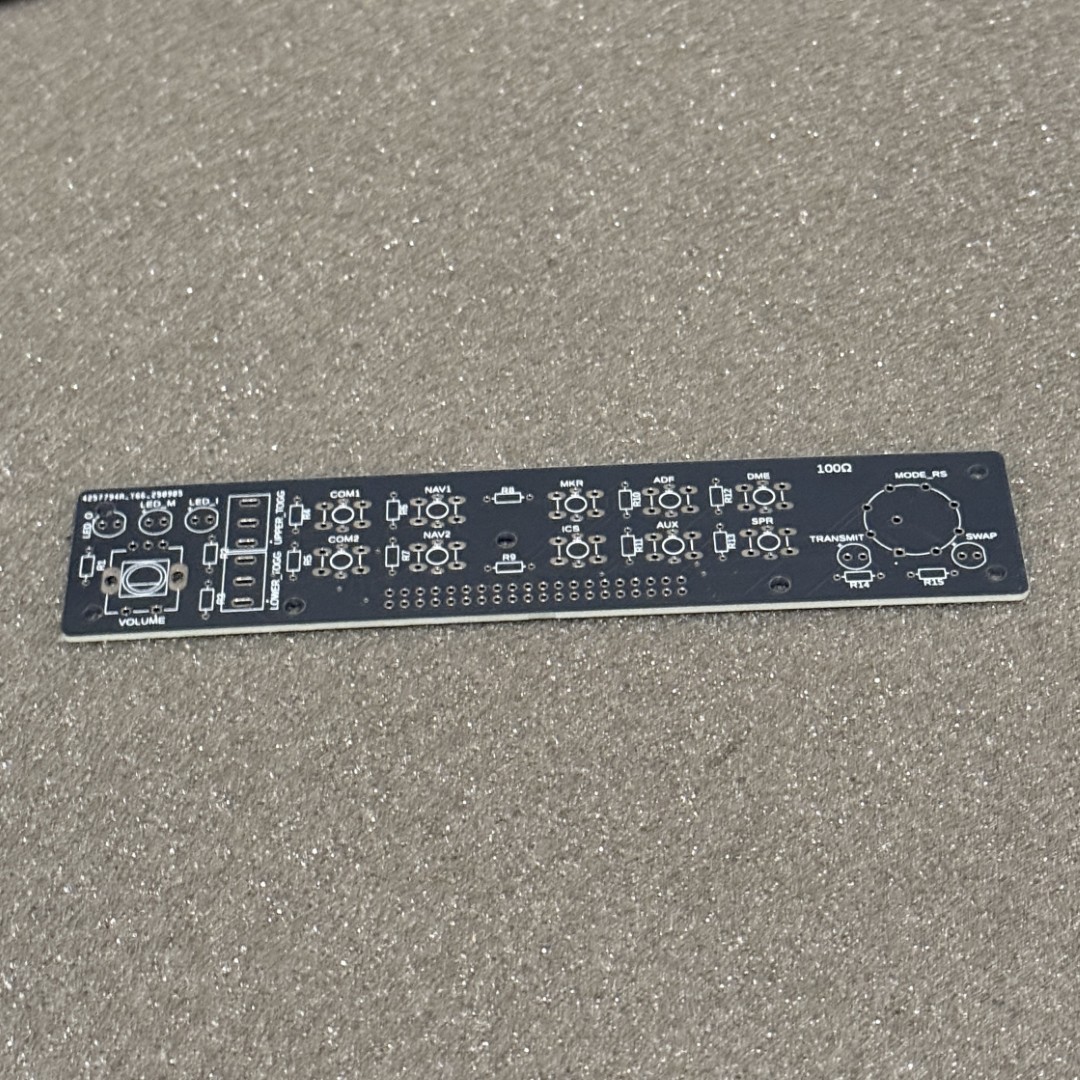

KMA28 Audio Panel Physical PCB

Make your own KMA-28!

For one unit you will need to purchase:

Arduino Mega Breakout Board System
x10 LED_PUSH_7MM
LED Blue, 5mm
LED White, 5mm
x2 LED Green, 5mm
LED Yellow, 5mm
RS16 Mini 6 Position Rotary Switch
x14 100Ω Resistor
150Ω Resistor
x2 Small ON OFF ON 3 Position Toggle SP3T
IDC 40 – Male
IDC_40 Cable
Encoder Plum 15mm
3D Printed Parts
x4 M3 Heat Set Insert (Height 4mm)
x3 M3 8mm Countersunk
x4 M3 12mm Countersunk
Shipping Label/Decal

Assembly Video
