GNS 530 Printed Circuit Board

Make your own GNS 530!

For one unit you will need to purchase:

Black, White, and Clear PLA
Arduino Pro Mega 2560
x11 LED White, 3mm
x8 47Ω Resistors
x14 6x6x7 LED Tactile Push Buttons
x2 IDC 40 – Male
x4 Pin Headers Row – Female
Pin Headers Row – Male
x2 ALPS_EC11EBB24C03
x2 Encoder Plum 15mm
5 Inch 640×480 LCD Display with controller

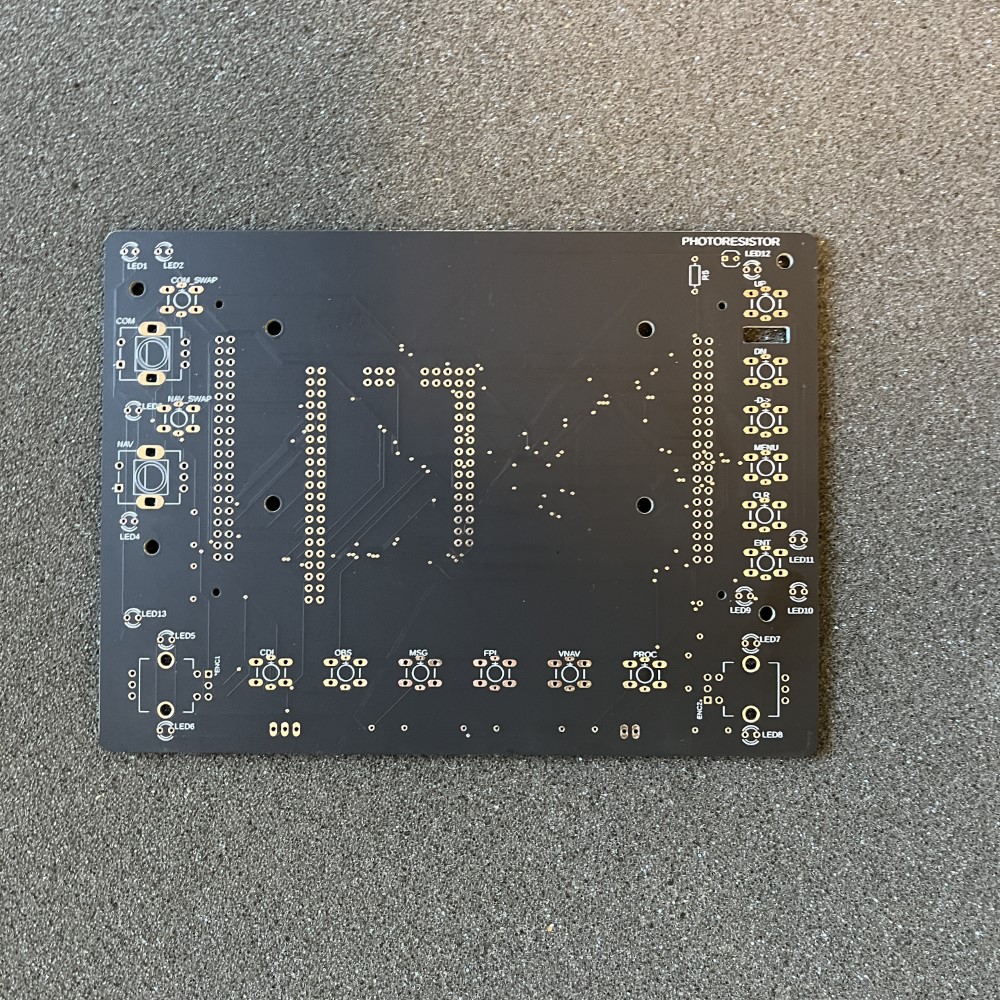

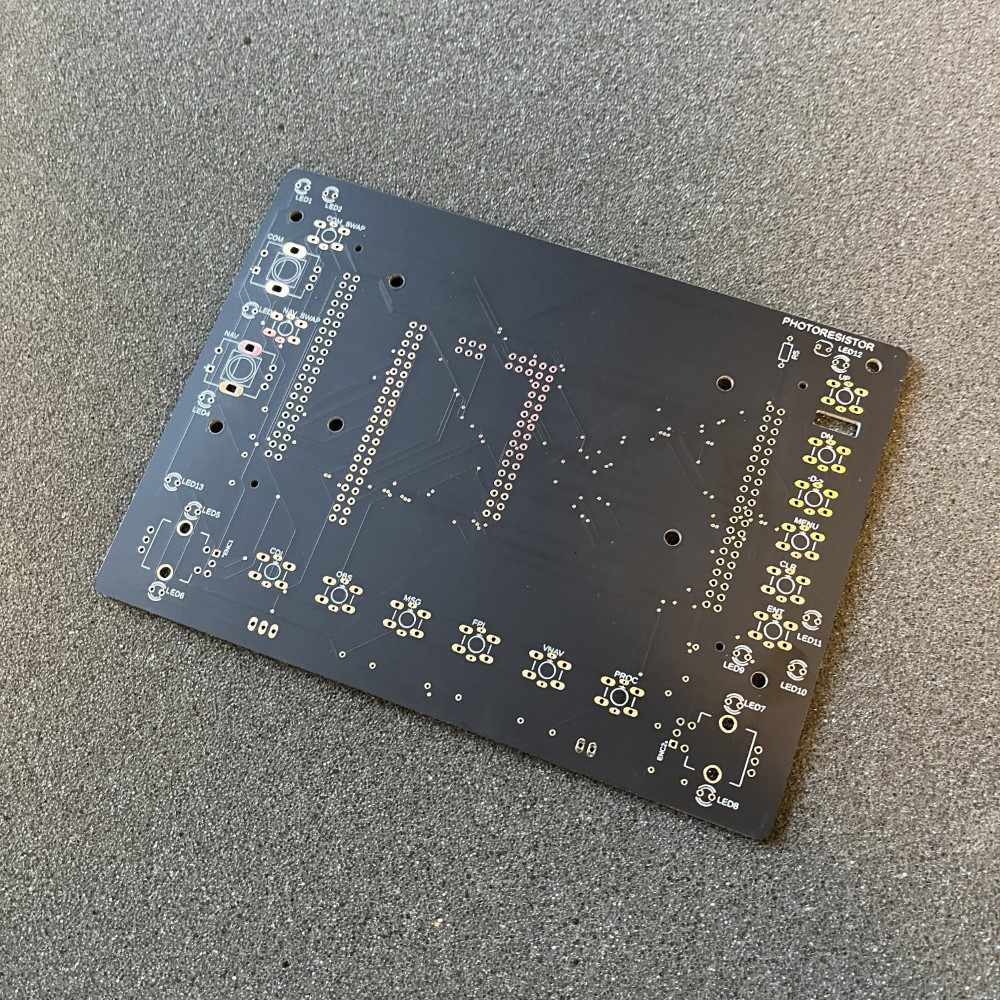

GNS 530 PCB
x8 M3 8mm Countersunk
x4 M3 Heat Set Insert (Height 4mm)
x4 20mm F to F Standoff
x6 M3 12mm Countersunk
x4 M2 8mm Countersunk
10k Ω resistor
Photoresistor (Optional)
DC Shunt
HDMI Cable 2m
12V Power Cable

Assembly Video
