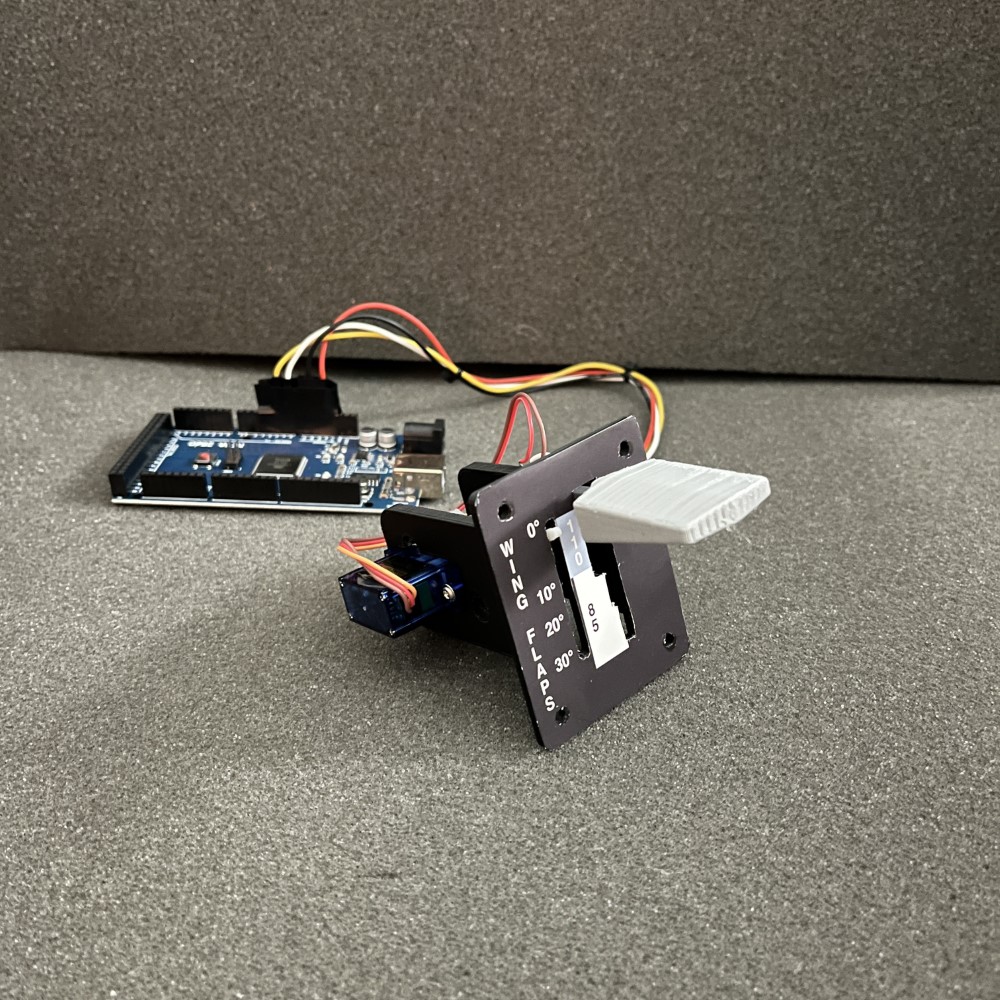

Cessna 172 Flaps Panel (Kit or Assembled)

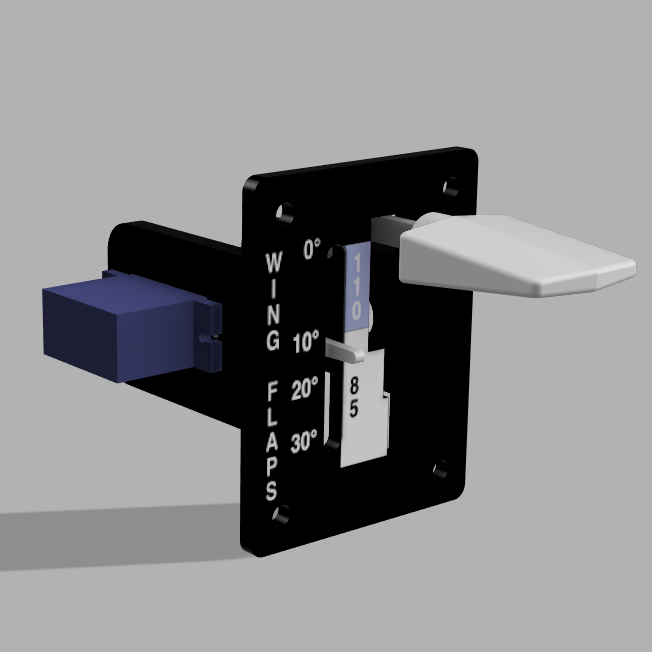

This Flap Switch is designed to be as realistic to the Cessna 172 as possible. The servo indicator “lags” behind the flap position, as it does in real life.

Visit the flaps assembly/configuration webinar for details on how to build and configure this module.

This is Version 2, which removes the need for a spring, and instead uses a friction plate

This includes:

• All 3D Printed Parts (Potentiometer Rod, Flaps Handle, Faceplate, Servo Needle, Friction Plate)
• 1 Paper Sticker Decal
• 1 Servo
• 1 Potentiometer
• 2 M3 6mm Screws
• 2 M3 20mm countersunk screws
• 2 M3 Nuts
• 3 male-male jumper cables to the Arduino
• 3 male-female jumper cables
• (If ordered) a MobiFlight Compatible Arduino

This is compatible with the Captain Bob Panel in the Cessna 172 Project.

PDF Drawing

Cutout

MSFS Config

X-Plane Config

Arduino .mfmc
